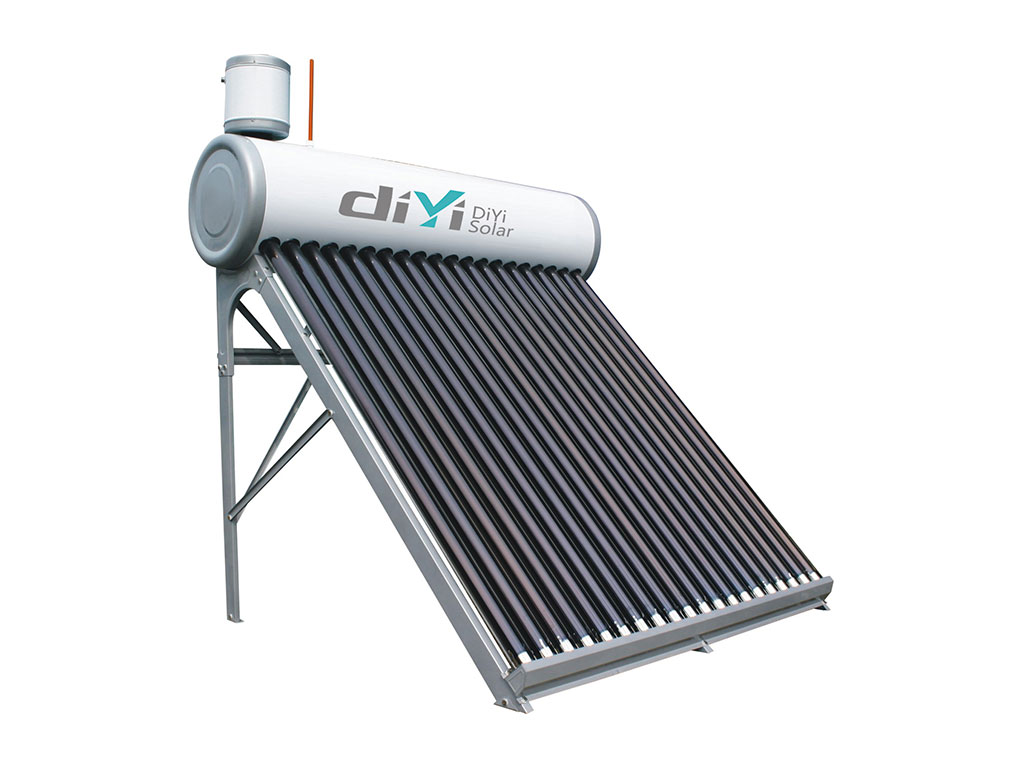

Non-pressure with assistance tank
Characteristics：
This model is one of the most favorite on the international market.It was scientifically and specially designed,is easy to install and operate.The important point is it can feed water automatically and ensure the outlet water as stable temperature,it will always provide you hot water.
Technical Parameters:
Inner tank: SUS 304-2B/0.41mm
Outer tank: Galvanized steel/0.41mm, SUS304-2B/0.41mm
Insulation: high density polyurethane foam 50mm
Vacuum tube:47*1500mm/58*1800mm, SS-CU-AIN/ALN or AL-N-AL coating
Bracket:Galvanized steel 1.5mm/SUS 201 1.2mm, 20/25/38/45/50 degree
Accessories:UV stabilized high temperature silicon
Capacity:100L 150L 200L 250L 300L（according
to customers’ requirement）
Parameter Table-1
| Parameter | Data |
|---|---|
| Place of original | China |
| Model Number | DIYI-NP02 |
| Price Terms | FOB,C&F,CIF |
| Brand Name | DIYI&OEM |
| Payment Terms | T/T,L/C |
| Minimum order | 1Set |
| Supply ability | 2000set/month |
| Delivery Time | 7 days |
DIYI-NP01-12
| Parameter | Data |
|---|---|
| Area(M2) | 1.224 |
| Vacuum tube Φ(mm) | 58 |
| Vacuum tube Length(mm) | 1800 |
| Vacuum tube Qty(pcs) | 10 |
| Volume(L) | 100 |
| Gross Weight (KG) | 53 |
| 20GP/40GP/40HQ Loading Qty(sets) | 84/173/203 |
DIYI-NP01-15
| Parameter | Data |
|---|---|
| Area(M2) | 1.904 |
| Vacuum tube Φ(mm) | 58 |
| Vacuum tube Length(mm) | 1800 |
| Vacuum tube Qty(pcs) | 15 |
| Volume(L) | 150 |
| Gross Weight (KG) | 73 |
| 20GP/40GP/40HQ Loading Qty(sets) | 61/116/142 |
DIYI-NP01-20
| Parameter | Data |
|---|---|
| Area(M2) | 2.584 |
| Vacuum tube Φ(mm) | 58 |
| Vacuum tube Length(mm) | 1800 |
| Vacuum tube Qty(pcs) | 20 |
| Volume(L) | 200 |
| Gross Weight (KG) | 90 |
| 20GP/40GP/40HQ Loading Qty(sets) | 48/84/112 |
DIYI-NP01-25
| Parameter | Data |
|---|---|
| Area(M2) | 3.264 |
| Vacuum tube Φ(mm) | 58 |
| Vacuum tube Length(mm) | 1800 |
| Vacuum tube Qty(pcs) | 25 |
| Volume(L) | 250 |
| Gross Weight (KG) | 118 |
| 20GP/40GP/40HQ Loading Qty(sets) | 40/77/92 |
DIYI-NP01-30
| Parameter | Data |
|---|---|
| Area(M2) | 3.944 |
| Vacuum tube Φ(mm) | 58 |
| Vacuum tube Length(mm) | 1800 |
| Vacuum tube Qty(pcs) | 30 |
| Volume(L) | 300 |
| Gross Weight (KG) | 136 |
| 20GP/40GP/40HQ Loading Qty(sets) | 34/68/82 |
Remark
- Inner tank and Outer tank diameter(mm):360/460
- Insulation thickness:50mm
- Vent connection(inch):1/2
- Electrical heating connection(mm):47
- Water connection(inch):1/2 or 3/4
- Assistant tank connection(inch):1/2
