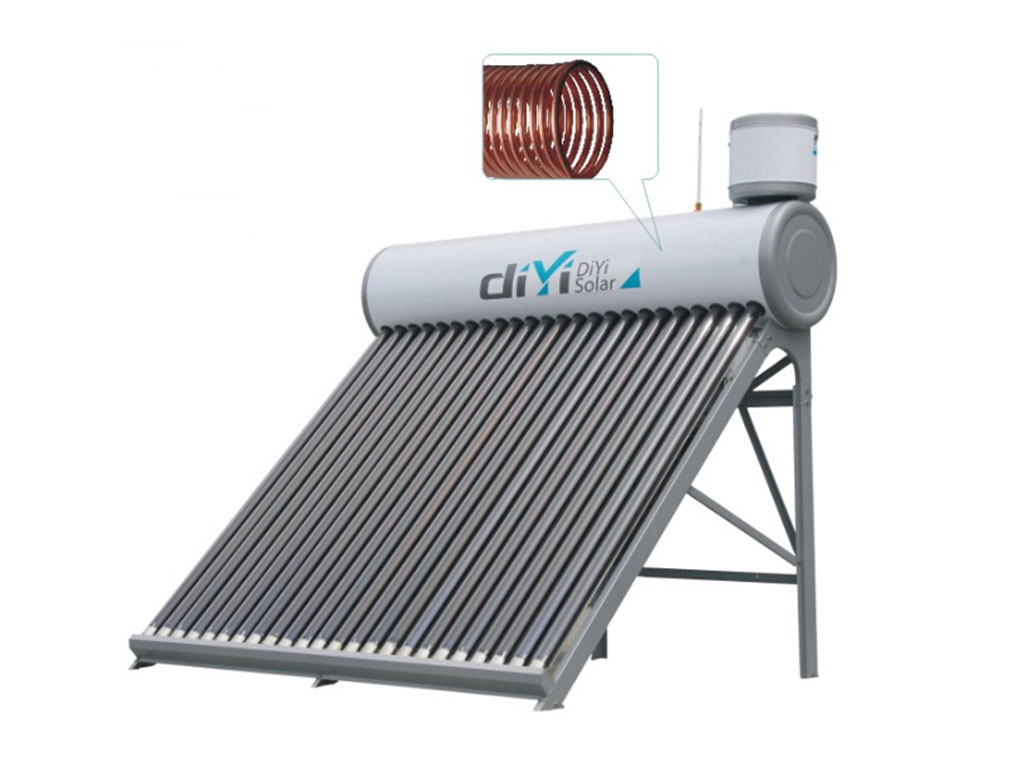

Integrative coiler solar water heater
Characteristics：
One copper coil inside the tank as the heat exchanger.When water flows into the copper coil,it absorbs the heat of the water in the tank via the copper coil,therefore the water tank is just a heat storage tank.
- Instant heat exchange and plentiful warm water for use
- make sure the water quality
- works with pressure
- output water temperature is stable,so it is very comfortable and safe to use
- hot and cold water flow is seperated
- the copper coil is with high quality and high grade material
- easy to operate,reliable to use and intelligent to work
Technical Parameters:
Inner tank: SUS 304-2B/0.41mm
Outer tank: Galvanized steel/0.41mm,SUS304-2B/0.41mm
Copper coil: Φ12mm with thinkness 0.8mm
Insulation: high density polyurethane foam 50mm
Vacuum tube:47*1500mm/58*1800mm
SS-CU-AIN/ALN or AL-N-AL coating
Bracket:Galvanized steel 1.5mm/SUS 201 1.2mm
20/25/38/45/50 degree
Accessories:UV stabilized high temperature silicon
Capacity: 200L 240L 300L 360L（according
to customers’ requirement）
Parameter Table-1
| Parameter | Data |
|---|---|
| Place of original | China |
| Model Number | DIYI-P01 |
| Price Terms | FOB,C&F,CIF |
| Brand Name | DIYI&OEM |
| Payment Terms | T/T,L/C |
| Minimum order | 1Set |
| Supply ability | 2000set/month |
| Delivery Time | Two weeks |
DIYI-P01-20
| Parameter | Data |
|---|---|
| Area(M2) | 1.224 |
| Vacuum tube Φ(mm) | 58 |
| Vacuum tube Length(mm) | 1800 |
| Vacuum tube Qty(pcs) | 10 |
| Volume(L) | 100 |
| Gross Weight (KG) | 53 |
| 20GP/40GP/40HQ Loading Qty(sets) | 84/173/203 |
DIYI-P01-24
| Parameter | Data |
|---|---|
| Area(M2) | 1.904 |
| Vacuum tube Φ(mm) | 58 |
| Vacuum tube Length(mm) | 1800 |
| Vacuum tube Qty(pcs) | 15 |
| Volume(L) | 150 |
| Gross Weight (KG) | 73 |
| 20GP/40GP/40HQ Loading Qty(sets) | 61/116/142 |
DIYI-P01-30
| Parameter | Data |
|---|---|
| Area(M2) | 2.584 |
| Vacuum tube Φ(mm) | 58 |
| Vacuum tube Length(mm) | 1800 |
| Vacuum tube Qty(pcs) | 20 |
| Volume(L) | 200 |
| Gross Weight (KG) | 90 |
| 20GP/40GP/40HQ Loading Qty(sets) | 48/84/112 |
DIYI-P01-36
| Parameter | Data |
|---|---|
| Area(M2) | 3.264 |
| Vacuum tube Φ(mm) | 58 |
| Vacuum tube Length(mm) | 1800 |
| Vacuum tube Qty(pcs) | 25 |
| Volume(L) | 250 |
| Gross Weight (KG) | 118 |
| 20GP/40GP/40HQ Loading Qty(sets) | 40/77/92 |
Remark
- Inner tank and Outer tank diameter(mm):360/460
- Max.Fluid pressure:1Mpa
- Operating fluid pressure:0.4Mpa
- Coli connection(inch):1/2
- Vent connection(inch):1/2
- Electrical heating connection(mm):47
- Water connection(inch):1/2’ or 3/4
- Assistant tank connection(inch):1/2
