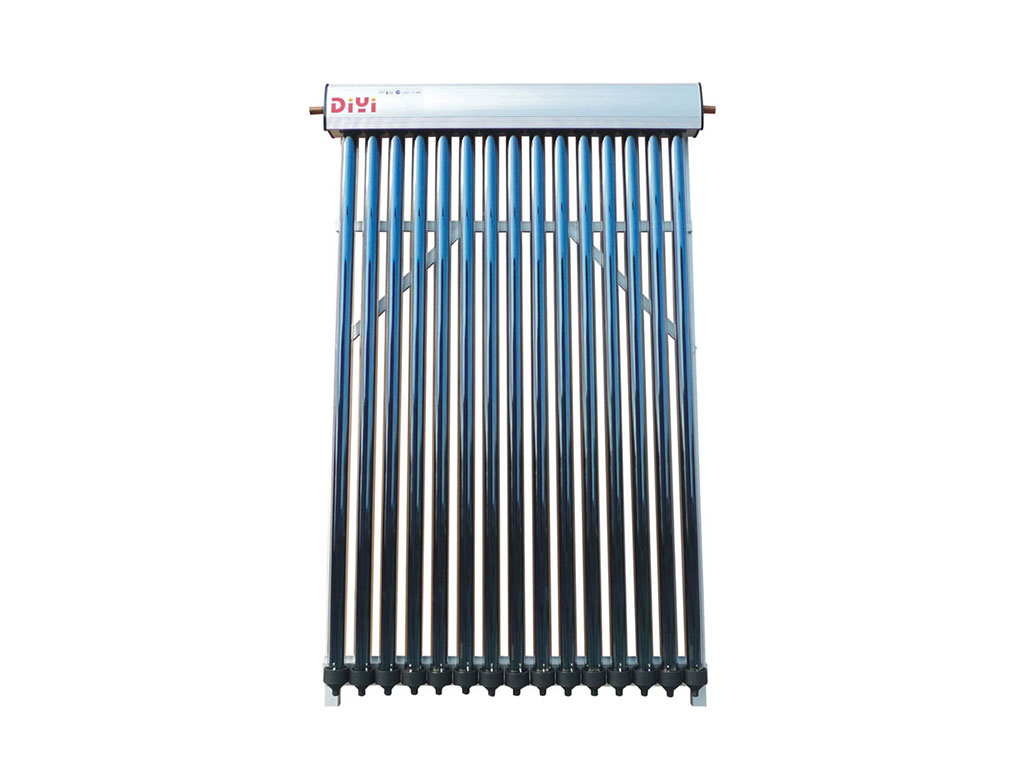

U Pipe Solar Collector

Characteristics:

The U type solar collector are always connected with existing heating supply device. The selective coating of the evacuated tube converts solar energy into heat energy and transfers heat to metal U tube by the aluminum fin.The liquid (usually glycol-water antifreeze mixture) in the metal U tube is heater, and conducts the heat energy to the water inside the storage tank through plate exchanger or internal spiral coiler.

Technical Parameters:

Manifold(interior): red copper
Manifold(exterior): aluminum alloy
U Pipe: diameter 8mm thickness/ 0.6mm /red copper
Aluminium fin: 1600 mm full length
Heat insulation layer: Eco-friendly rockwool 50mm
Vacuum tube: 58*1800mm, SS-CU-AIN/ALN coating
Bracket: Aluminum alloy 1800mm, 0-50 degree
Hail resistance: 25mm
Max pressure: 6 bar
Anti-freezing: > -35 ℃
Daily efficiency: ≥55%

Parameter Table-1

ParameterData
Place of originalChina
Model NumberDIYI-U01
Price TermsFOB,C&F,CIF
Brand NameDIYI&OEM
Payment TermsT/T,L/C
Minimum order1Set
Supply ability2000set/month
Delivery TimeTwo weeks

DIYI-U01-10

ParameterData
Area(M2)1.224
Vacuum tube Φ(mm)58
Vacuum tube Length(mm)1800
Vacuum tube Qty(pcs)10
Volume(L)100
Gross Weight (KG)53
20GP/40GP/40HQ Loading Qty(sets)84/173/203

DIYI-U01-15

ParameterData
Area(M2)1.904
Vacuum tube Φ(mm)58
Vacuum tube Length(mm)1800
Vacuum tube Qty(pcs)15
Volume(L)150
Gross Weight (KG)73
20GP/40GP/40HQ Loading Qty(sets)61/116/142

DIYI-U01-20

ParameterData
Area(M2)2.584
Vacuum tube Φ(mm)58
Vacuum tube Length(mm)1800
Vacuum tube Qty(pcs)20
Volume(L)200
Gross Weight (KG)90
20GP/40GP/40HQ Loading Qty(sets)48/84/112

DIYI-U01-25

ParameterData
Area(M2)3.264
Vacuum tube Φ(mm)58
Vacuum tube Length(mm)1800
Vacuum tube Qty(pcs)25
Volume(L)250
Gross Weight (KG)118
20GP/40GP/40HQ Loading Qty(sets)40/77/92

DIYI-U01-30

ParameterData
Area(M2)3.944
Vacuum tube Φ(mm)58
Vacuum tube Length(mm)1800
Vacuum tube Qty(pcs)30
Volume(L)300
Gross Weight (KG)136
20GP/40GP/40HQ Loading Qty(sets)34/68/82

Remark

  1. Manifold Connections(inch):3/4
  2. Max.service temperature: 95℃
  3. Max.stagnation temperature:200.3℃
  4. Flow range recommendation(50-150L/m2h)
