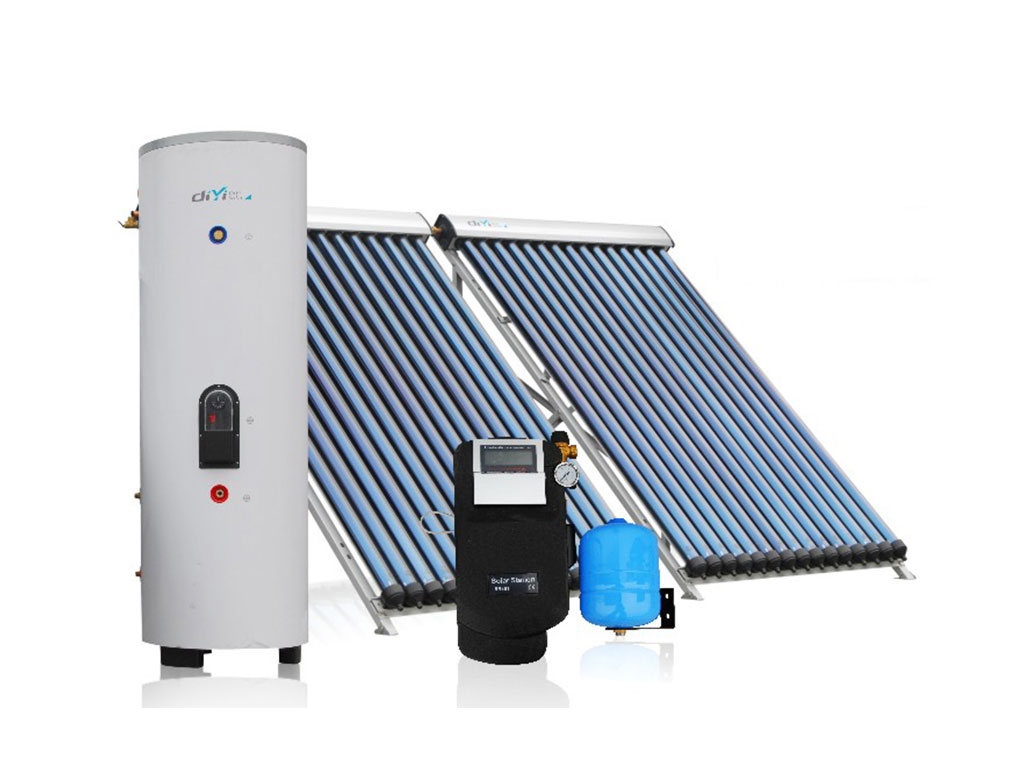

Solar Split Pressurized System

Characteristics:

  1. The split solar water heater is composed by heat collector,storage tank,controller,working station and installation parts
  2. Collector is separated from storage tank,so the tank can be put in any place of house.And the collector can be put on the inclined or flat roof
  3. Module design,arbitrary combination,harmony with the building perfectly
  4. Intelligent control and automatic operation
  5. Anti-freeze: No water in the tubes when it works,also the system controller has the anti-freezing function which the temperature circulation will operate while it reached the fixed temperature
  6. Multifunction:bathing,washing,domestic heating etc
  7. Could work at anytime and use enjoyably
Solar Split Pressurized System

Technical Parameters:

Inner tank: SUS 304-2B/2mm
Outer tank: Galvanized steel/0.5mm
Insulation: high density polyurethane foam 50mm
Vacuum tube: 58*1800mm, SS-CU-AIN/ALN coating
Collector: aluminum alloy casting and copper pipe chanel
Bracket: Aluminum alloy 1.5mm, 0-50 degree
Accessories: Circulation pump,expansion vessel,piezometer,flowmeter
Working pressure:0.7bar
Working temperature:-35-50℃
Capacity: 150L 200L 250L 300L 500L

Parameter Table-1

ParameterData
Place of originalChina
Model NumberDIYI-S01
Price TermsFOB,C&F,CIF
Brand NameDIYI&OEM
Payment TermsT/T,L/C
Minimum order1Set
Supply ability2000set/month
Delivery TimeTwo weeks

DIYI-NP01-10

ParameterData
Area(M2)1.224
Vacuum tube Φ(mm)58
Vacuum tube Length(mm)1800
Vacuum tube Qty(pcs)10
Volume(L)100
Gross Weight (KG)53
20GP/40GP/40HQ Loading Qty(sets)84/173/203

DIYI-S01-15

ParameterData
Area(M2)1.904
Vacuum tube Φ(mm)58
Vacuum tube Length(mm)1800
Vacuum tube Qty(pcs)15
Volume(L)150
Gross Weight (KG)73
20GP/40GP/40HQ Loading Qty(sets)61/116/142

DIYI-S01-20

ParameterData
Area(M2)2.584
Vacuum tube Φ(mm)58
Vacuum tube Length(mm)1800
Vacuum tube Qty(pcs)20
Volume(L)200
Gross Weight (KG)90
20GP/40GP/40HQ Loading Qty(sets)48/84/112

DIYI-S01-25

ParameterData
Area(M2)3.264
Vacuum tube Φ(mm)58
Vacuum tube Length(mm)1800
Vacuum tube Qty(pcs)25
Volume(L)250
Gross Weight (KG)118
20GP/40GP/40HQ Loading Qty(sets)40/77/92

DIYI-S01-30

ParameterData
Area(M2)3.944
Vacuum tube Φ(mm)58
Vacuum tube Length(mm)1800
Vacuum tube Qty(pcs)30
Volume(L)300
Gross Weight (KG)136
20GP/40GP/40HQ Loading Qty(sets)34/68/82

Remark

Three models of DIYI-S01:
DIYI-S010:no coiler; DIYI-S011:single coiler; DIYI-S012:two coilers in the tank.
