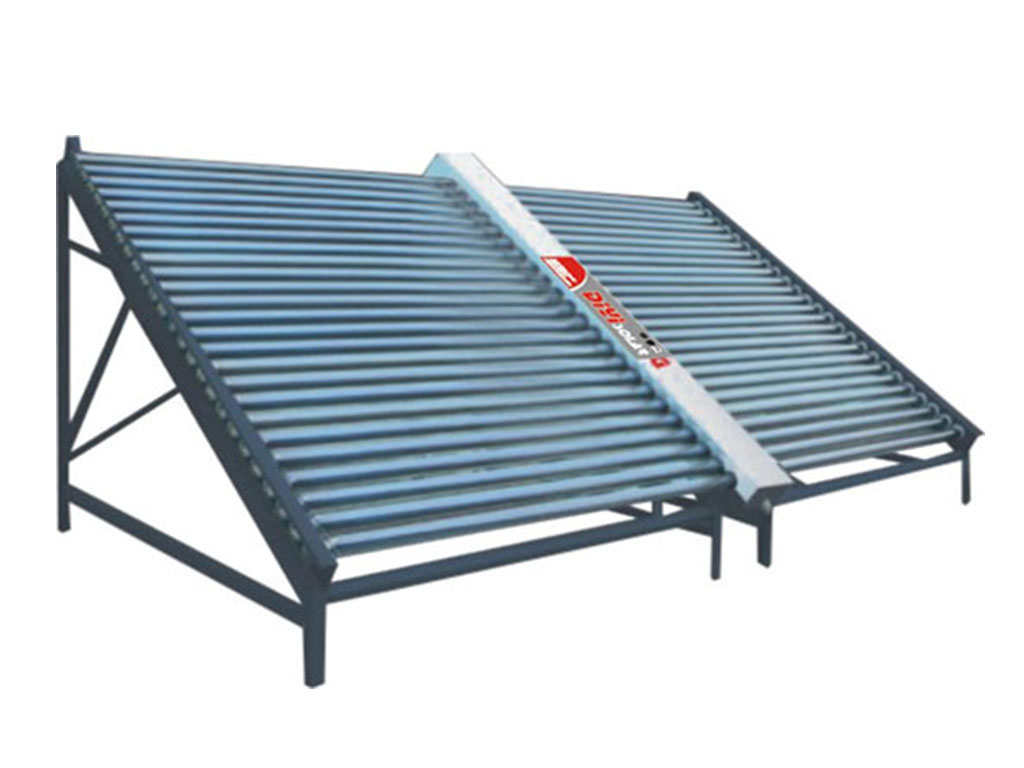

Project Solution Solar collector

Characteristics:

  1. Applicable to solar hot water supply for hotel,school etc./swimming pool heating
  2. Operates automatically, intelligent controlling
  3. any type of back up heating can be combined
  4. By collecting solar energy,the collectors could offering hot water for tens and hundreds of people
  5. Only investment once,benefit forever

Parameter Table-1

ParameterData
Place of originalChina
Model NumberDIYI-E01
Price TermsFOB,C&F,CIF
Brand NameDIYI&OEM
Payment TermsT/T,L/C
Minimum order1Set
Supply ability2000set/month
Delivery TimeTwo weeks

DIYI-E01-10

ParameterData
Area(M2)1.224
Vacuum tube Φ(mm)58
Vacuum tube Length(mm)1800
Vacuum tube Qty(pcs)10
Volume(L)100
Gross Weight (KG)53
20GP/40GP/40HQ Loading Qty(sets)84/173/203

DIYI-E01-15

ParameterData
Area(M2)1.904
Vacuum tube Φ(mm)58
Vacuum tube Length(mm)1800
Vacuum tube Qty(pcs)15
Volume(L)150
Gross Weight (KG)73
20GP/40GP/40HQ Loading Qty(sets)61/116/142

DIYI-E01-20

ParameterData
Area(M2)2.584
Vacuum tube Φ(mm)58
Vacuum tube Length(mm)1800
Vacuum tube Qty(pcs)20
Volume(L)200
Gross Weight (KG)90
20GP/40GP/40HQ Loading Qty(sets)48/84/112

DIYI-E01-25

ParameterData
Area(M2)3.264
Vacuum tube Φ(mm)58
Vacuum tube Length(mm)1800
Vacuum tube Qty(pcs)25
Volume(L)250
Gross Weight (KG)118
20GP/40GP/40HQ Loading Qty(sets)40/77/92

DIYI-E01-30

ParameterData
Area(M2)3.944
Vacuum tube Φ(mm)58
Vacuum tube Length(mm)1800
Vacuum tube Qty(pcs)30
Volume(L)300
Gross Weight (KG)136
20GP/40GP/40HQ Loading Qty(sets)34/68/82

Remark

Vacuum tube size: 58*1800
